1N5615GP THRU 1N5623GP is GEC's glass passivated junction fast switching rectifier, with a reverse voltage range of 200-1000V and a rated forward current of 1.0A.

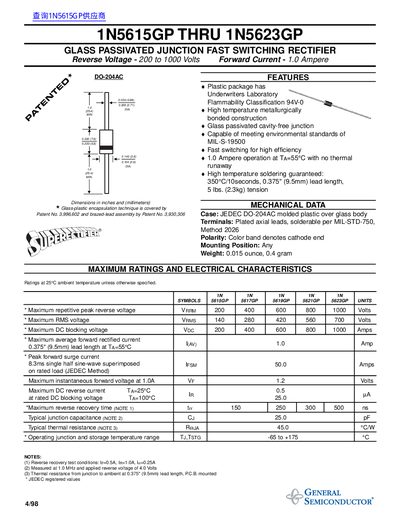

This document is a technical datasheet for the General Semiconductor 1N5615GP through 1N5623GP series of glass passivated junction fast switching rectifiers. The devices are designed for high efficiency applications with a forward current rating of 1.0 Ampere and reverse voltages ranging from 200 to 1000 Volts.
| Forward Current | 1.0 Ampere |
|---|---|
| Reverse Voltage Range | 200 to 1000 Volts |
| Package Type | DO-204AC molded plastic over glass body |
| Operating Temperature Range | -65 to +175 °C |
| Maximum Reverse Recovery Time | 150 ns (for 1N5615GP) |
The device supports a maximum average forward rectified current of 1.0 Amp.
The unit operates from a minimum of -65°C to a maximum of +175°C.
