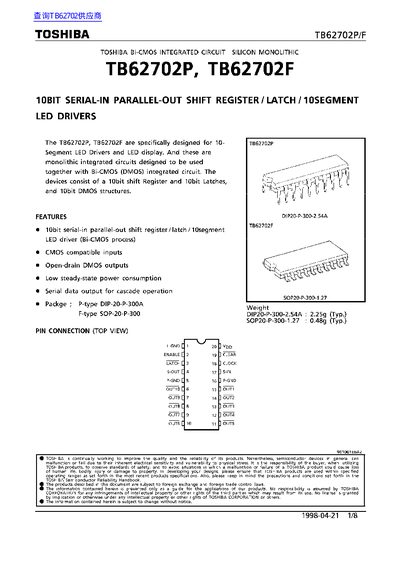

The TOSHIBA TB62702P and TB62702F are monolithic integrated circuits specifically designed as 10-bit serial-in parallel-out shift registers, latches, and 10-segment LED drivers. These devices utilize a Bi-CMOS process and consist of 10-bit shift registers, 10-bit latches, and 10-bit DMOS structures for driving LED displays.
| Function | 10bit serial-in parallel-out shift register / latch / 10segment LED driver |
|---|---|
| Process | Bi-CMOS process |
| Supply Voltage | 4.5 ~ 5.5 V |
| Operating Temperature | -40~85 °C |
| Output Current (Max) | 24 mA/ch |
The recommended operating temperature range is -40 to 85 °C.
Yes, the device features CMOS compatible inputs.
