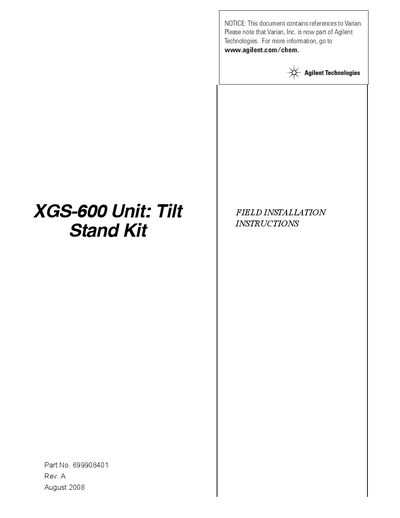

This document is the Field Installation Instructions of XGS-600 Unit: Tilt Stand Kit, which mainly introduces the composition, usage method, maintenance and other contents of the product.
This document provides field installation instructions for the Varian XGS-600S Tilt Stand Kit (Part No. 699908401). The kit includes a universal Hammond Manufacturing stand wire form, cam feet, and mounting screws, along with two rubber bumper feet that are not used during this specific installation.
The guide details the required tools and outlines a four-step procedure: disconnecting power, locating mounting holes on the unit, installing the cam foot onto the wire stand using provided screws, and securing the assembly to the XGS-600S unit.
A flat head screw driver is needed for installation.
You must wait 30 seconds after turning off the power to the unit.
The kit includes four mounting screws for securing the feet.
