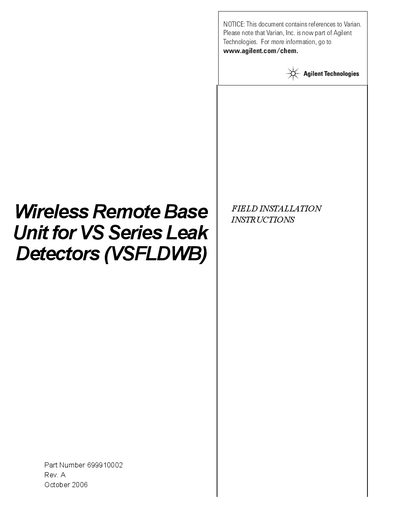

Agilent Wireless Remote Base Unit for VS Leak Detectors Installation Instructions

About this manual

This document provides field installation instructions for the Wireless Remote Base Unit for VS Series Leak Detectors. It covers safety precautions, required equipment, and a step-by-step procedure to install the wireless board assembly within the unit's fan bracket.

The guide details the removal of cover screws, disconnection of the fan connector, and the specific orientation required for installing the wireless base board. It concludes with steps to reconnect power, verify system readiness, and reference additional manuals for leak detector activation.

What's inside

• Documentation Standards
• Hazard and Safety Information
• Equipment Required
• Installation Procedure
• Rear Cover Removal
• Front Cover Removal
• Fan Assembly Disconnection
• Wireless Antenna Installation
• Base Board Assembly
• System Verification

Specifications

Frequently asked questions

What software revision is required before I/O installation?

The software revision must be 2.0, which can be checked by navigating from the Home screen menu to System Information.

How long must you wait after unplugging before performing maintenance?

You must wait 30 seconds for the high voltage to dissipate.

How long does it take for the system to reach System Ready mode after installation?

The home screen should progress to System Ready within ten minutes.
