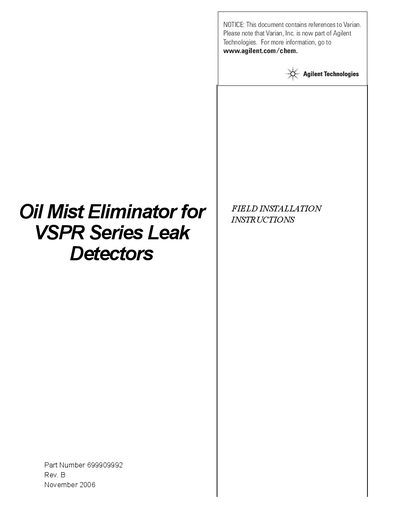

Varian VSPR Series Oil Mist Eliminator Field Installation Instructions

About this manual

This document provides field installation instructions for an Oil Mist Eliminator Kit intended for VSPR Series Leak Detectors. It includes necessary safety warnings regarding solvents, static electricity, and vacuum equipment handling before the installation process begins.

The guide details the step-by-step procedure to install the unit, including removing the rear cover, disconnecting hoses, installing the KF-16 flange adapter with a centering ring, and reassembling the unit. It concludes with steps to reconnect power and verify system readiness.

What's inside

• Documentation Standards
• Hazard and Safety Information
• Solvents
• Vacuum Equipment and Cleanliness
• O-ring Care
• Metal Seal Care
• Installation Instructions

Frequently asked questions

What solvents are recommended for cleaning the leak detector?

Varian recommends VacuSolv solvent, or acceptable alternatives include isopropyl alcohol (IPA) or Dow Corning® OS-20.

What tools are required to install the Oil Mist Eliminator?

The installation requires an Oil Mist Eliminator Kit, Adjustable Wrench, Extended Length M5 Allen Wrench, and Adjustable Pliers.

How long should the system take to reach System Ready mode after installation?

The home screen should progress from Spectube Pressure Wait to Stabilization Wait and finally to System Ready within ten minutes.
