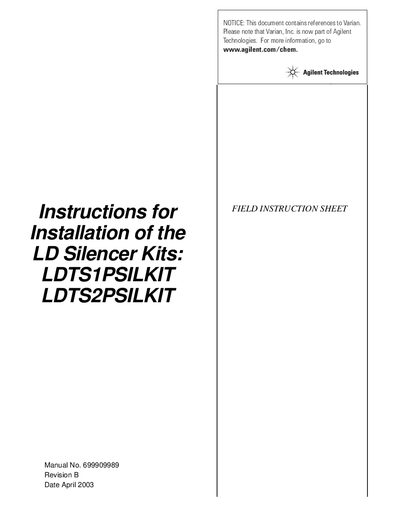

This document describes the installation instructions for Agilent LD TS Silencer Kits (LDTS1PSILKIT and LDTS2PSILKIT). The installation method is universal, but Single-Pump systems shall be used in the description for clarity.
This document provides installation instructions for the LD TS Silencer Kits, specifically models LDTS1PSILKIT and LDTS2PSILKIT. These kits are designed to reduce ambient noise generated by Dry pumps when used with Single- or Dual-Pump Cart units.
The guide details the components included in the kit, such as the silencer assembly, tubing lengths, clamps, and screws. It outlines a step-by-step procedure for removing existing exhaust tubing and mounting the new silencer assembly to the pump base using provided hardware.
These kits are designed to dampen ambient noise from a Dry pump when used on Single- or Dual-Pump Cart units.
It must be mounted on the Left side of the Pump for ease of installation.
The Short Tubing Length provided measures 72 inches.
