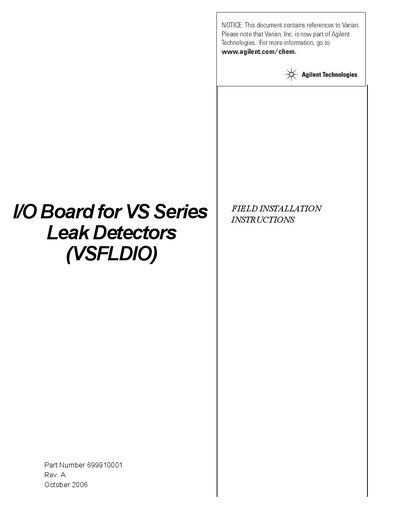

Agilent VSFLDIO I/O Board for VS Series Leak Detectors Field Installation Instructions

About this manual

This document provides field installation instructions for replacing or installing an I/O Board (Part Number 699910001) in a Varian/Agilent VS Series Leak Detector. It includes critical safety warnings regarding high voltage, solvents, and static electricity protection.

The guide details the required tools, such as Allen wrenches and screwdrivers, and outlines a specific procedure to remove the rear and front covers, disconnect internal components like the fan assembly, and install the new I/O board into its designated bracket.

What's inside

• Documentation Standards
• Hazard and Safety Information
• Solvents
• Vacuum Equipment and Cleanliness
• O-ring Care
• Metal Seal Care
• Equipment Required
• Installation Procedure

Specifications

Frequently asked questions

What software revision is required before installing the I/O board?

The software revision must be 2.0, which can be verified by navigating to System Information from the Home screen menu.

How long must you wait after unplugging before proceeding with maintenance?

You must wait 30 seconds for the high voltage to dissipate.

What type of gloves are recommended when handling spectrometer internal components?

Non-powdered, ESD-safe Nitride or equivalent gloves should be worn.
