PT800A . PT800M is a single-phase silicon rectifier from ABB with a rated current of 8A and a maximum reverse peak voltage of 50.1000V. It has a plastic case with UL94V-0 certification and weighs approximately 1.8g.

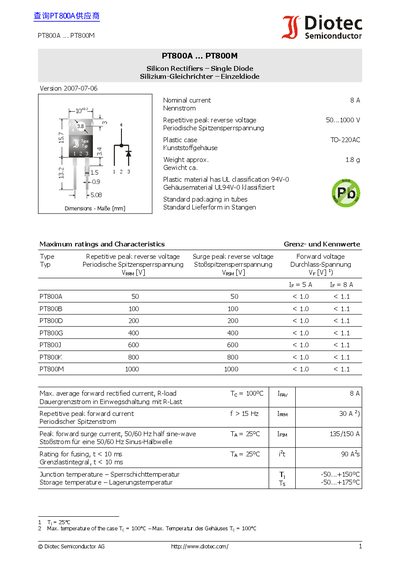

This document is a technical datasheet for the Diotec PT800 series of silicon rectifiers (single diodes). It provides maximum ratings, electrical characteristics, and physical dimensions for various models within the series.
The text includes specific data points such as nominal current, repetitive peak reverse voltage, forward voltage drop, thermal resistance, and temperature limits. A table lists specifications for types PT800A through PT800M.
| Nominal current | 8A |
|---|---|
| Package type | TO-220AC |
| UL classification | 94V-0 |
| Maximum average forward rectified current | 8A |
| Junction temperature range | -50...+150°C |
The device can be stored between -50°C and +175°C.
The maximum average forward rectified current is 8 A when the case temperature is 100°C.
The junction temperature must not exceed 150°C.
The forward voltage drop is less than 11 V at a forward current of 8 A.
