The document describes a product called BY16, which is a silicon rectifier. Its features include a nominal current of 3A, a repetitive peak reverse voltage of 200...2000V, a plastic case, a weight of approximately 1g, and a plastic material with UL classification 94V-0.

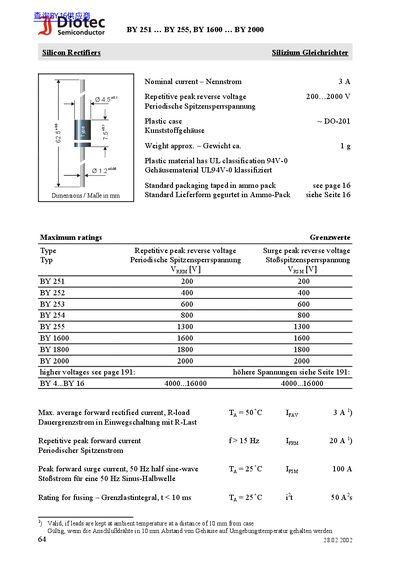

This document is a technical datasheet for Diotec Semiconductor's BY series silicon rectifiers. It provides specifications for models ranging from the BY 251 to the BY 2000, detailing their plastic case construction (DO-201) and UL 94V-0 classification.
The text lists maximum ratings including nominal currents of 3A and peak reverse voltages up to 2000V. It also includes electrical characteristics such as forward voltage drop, leakage current, and thermal resistance values. This manual is written in German.
| Plastic case classification | UL 94V-0 |
|---|
The maximum average forward rectified current is 3A when the case temperature is 50°C.
The peak forward surge current rating is 100A for a 50 Hz half sine-wave at a case temperature of 25°C.
The maximum operating junction temperature is +150°C.
