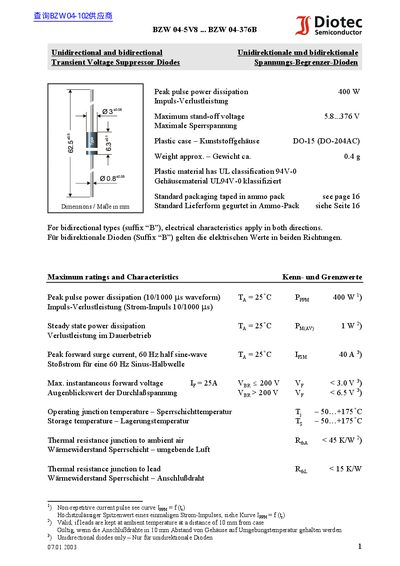

This document is a datasheet for the Diotec BZW 04 series of unidirectional and bidirectional transient voltage suppressor diodes. It covers various voltage ratings from 5.8V to 376V and includes maximum ratings, electrical characteristics, and packaging information.
| Peak pulse power dissipation | 400 W |
|---|---|
| Maximum stand-off voltage range | 5.8...376 V |
| Plastic case type | DO-15 (DO-204AC) |
| Weight | approx. 0.4g |
| UL classification | 94V-0 |
| Operating junction temperature | -50...+175 C |
| Thermal resistance junction to ambient | <45K/W |
| Thermal resistance junction to lead | 15 KW |
The standard tolerance for the breakdown voltage for each type is ±5%.
For bidirectional types, the electrical characteristics apply in both directions.
The maximum peak forward surge current is 40 A.
