GBS 4A is a 4A silicon bridge rectifier from ON Semiconductor. It has a rated current of 4A, a rated reverse peak voltage of 50-1000V, an external size of 19 x 3.5 x 10 [mm], and a weight of approximately 1.3g. The plastic material has UL 94V-0 certification.

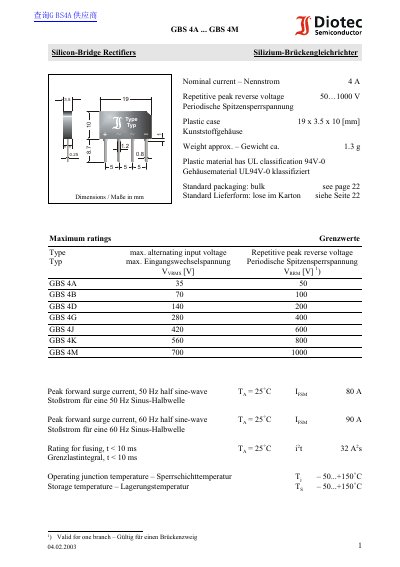

This document provides technical specifications for the Diotec GBS series of plastic-case silicon-bridge rectifiers. The devices are rated for a nominal current of 4 A and repetitive peak reverse voltages ranging from 35 V to 1000 V, depending on the specific model (GBS 4A through GBS 4M). This manual is written in German.
| Nominal current | 4 A |
|---|---|
| Case material classification | UL94V-0 |
| Operating junction temperature range | -50...+150 °C |
The nominal current is rated at 4 A.
Both the operating junction temperature and storage temperature range from -50 to +150 C.
The typical thermal resistance from the junction to the case is 12 K/W.
