DB 15-005 ~ DB 15-16 are three-phase Si bridge rectifiers produced by Siemens, with a rated current of 15 A and a weight of about 21 g.

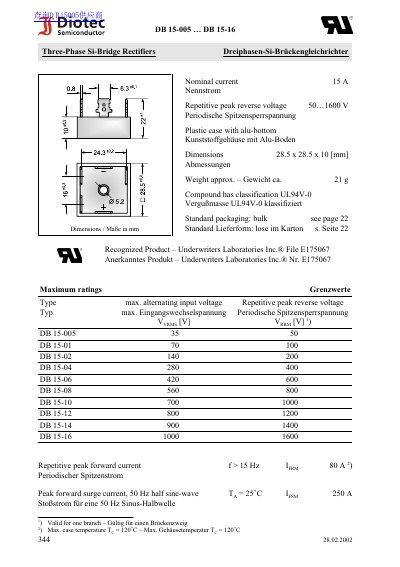

This document is a datasheet for the Diotec Semiconductor DB 15-005 through DB 15-16 series of three-phase silicon bridge rectifiers. It provides maximum ratings including nominal currents up to 15 A and repetitive peak reverse voltages ranging from 50 V to 1600 V. The devices feature a plastic case with an aluminum bottom and are classified as UL94V-0. This manual is written in German.
| Nominal Current | 15 A |
|---|---|
| Maximum Case Temperature | 120 C |
| Repetitive Peak Forward Current | 80 A |
| Dimensions | 28.5 x 28.5 x 10 mm |
| Weight | approx. 21 g |
| Thermal Resistance Junction to Case | < 3.3 K/W |
The dimensions are 28.5 x 28.5 x 10 mm.
The maximum case temperature is 120 °C.
The maximum repetitive peak forward current is 80 A.
