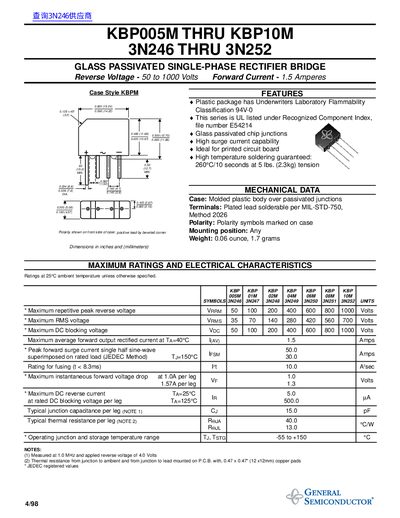

3N246-3N252 are KBP005M-KBP10M series glass passivated single-phase rectifier bridge, with a rated reverse voltage of 50-1000V and a rated forward current of 1.5A.
This document provides technical specifications for the KBP005M through KBP10M series of glass passivated single-phase rectifier bridges. The components are available in plastic packages with Underwriters Laboratory Flammability Classification 94V-0 and are UL listed under Recognized Component Index file number E54214.
The datasheet details maximum ratings such as reverse voltage ranging from 50 to 1000 volts, forward current of 1.5 amperes, and peak forward surge current capabilities. It also includes typical electrical characteristics like junction capacitance, thermal resistance, and operating temperature ranges from -55°C to +150°C.
| Product Type | Glass Passivated Single-Phase Rectifier Bridge |
|---|---|
| Flammability Classification | 94V-0 |
| UL File Number | E54214 |
| Maximum Forward Current (Iav) | 1.5 Amps |
| Peak Forward Surge Current (IFSM) | 50.0 Amos |
| Operating Temperature Range | -55 to +150 °C |
The maximum average forward output rectified current at an ambient temperature of 40°C is 1.5 Amps.
The operating junction and storage temperature range is from -55 to +150 °C.
