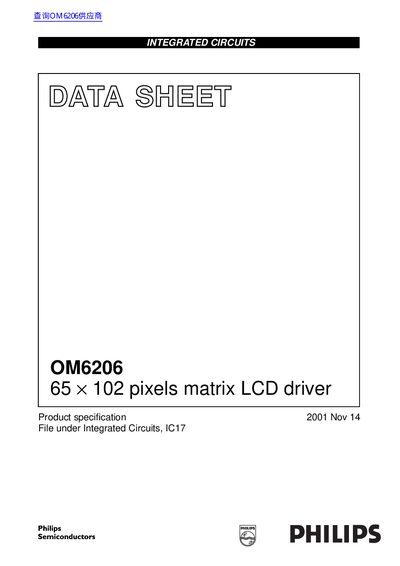

This document is about the product specification of OM6206 65 × 102 pixels matrix LCD driver. It includes detailed information about the features, applications, general description, ordering information, pin functions, etc.
The Philips OM6206 is a low-power integrated circuit designed to drive graphic liquid crystal displays with dimensions of 65 rows by 102 columns. It functions as both a controller and a driver, integrating necessary display functions into a single chip to minimize external components.
The device features an on-chip voltage multiplier for generating LCD supply and bias voltages, reducing the need for external circuitry. It interfaces with microcontrollers via a serial bus interface operating at speeds up to 4.0 Mbits/s and supports both internal oscillators and external clock signals.
| Display resolution | 65 rows and 102 columns |
|---|---|
| Display data RAM size | 65 × 102 bits |
| Serial interface speed | 4.0 Mbits/s |
| Logic supply voltage range | 2.5 to 5.5 V |
| High-voltage generator supply range | 2.5 to 4.5 V |
| Display supply voltage range | 4.5 to 9.0 V |
| Operating temperature range | -40 to +85 °C |
The document lists telecom equipment as a primary application.
No, it includes an on-chip oscillator that requires no external components, though an external clock is also possible.
The serial interface supports a maximum speed of 4.0 Mbits/s.
