PBSS5320D is a low VCEsat PNP transistor with low collector-emitter saturation voltage, high current capability and improved device reliability due to reduced heat generation. It can be used in supply line switching circuits, battery management applications, DC/DC converter applications, strobe flash units and heavy duty battery powered equipment (motor and lamp drivers).

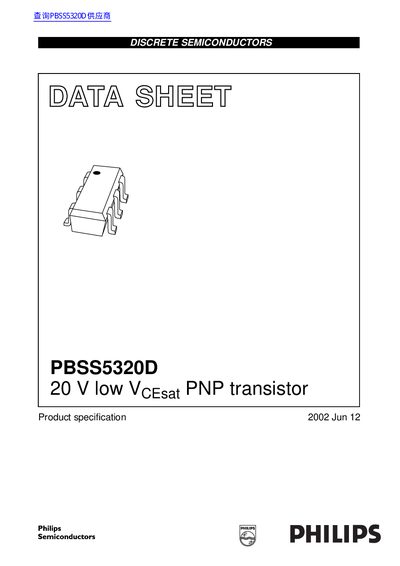

This document is a product specification datasheet for the Philips PBSS5320D, a discrete semiconductor component. It describes a 20 V low collector-emitter saturation voltage (Vcesat) PNP transistor housed in a plastic SOT457 (SC-74) package with six leads.
The datasheet provides comprehensive technical data including quick reference parameters, limiting values for absolute maximum ratings, thermal characteristics, and electrical characteristics such as current gain and transition frequency. It also includes application examples like supply line switching and battery management, along with a detailed mechanical outline of the SOT457 package.
| Collector-emitter voltage (VCEO) | -20 V |
|---|---|
| Peak collector current | -5 A |
| Equivalent on-resistance (Reesat) | 133 mΩ |
| Package type | SOT457 (SC-74) plastic package |
The maximum DC collector current is -3 A, with a peak collector current of -5 A.
The plastic surface mounted package has 6 leads.
