PDTC124EE is a NPN bipolar transistor manufactured by Philips Semiconductors. It has two 22 kΩ resistors built-in, which simplifies circuit design, reduces the number of components and board space. This datasheet includes the product features, applications, pin definitions, marking codes, parameter ranges and more.

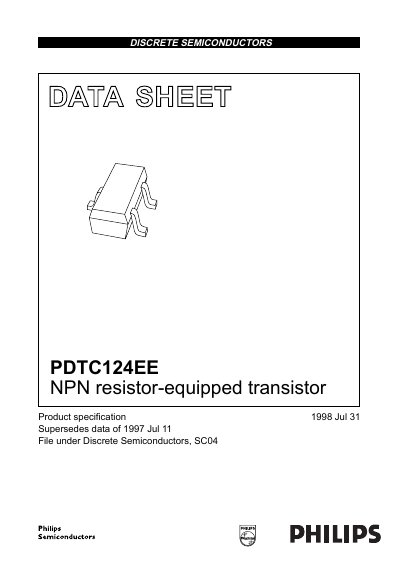

The document is a product specification data sheet for the PDTC124EE, an NPN resistor-equipped transistor manufactured by Philips Semiconductors. It features built-in bias resistors (Ri and R2) with typical values of 22 kΩ each to simplify circuit design in interface and driver applications.
| Output current (DC) and peak collector current | 100 mA |
|---|---|
| Total power dissipation | 150 mW |
| DC current gain (hFE) | 60 |
| Input resistor (Ri) typical value | 22 kΩ |
The device is available in an SC-75; SOT416 plastic package.
They simplify circuit design and reduce the number of components required.
