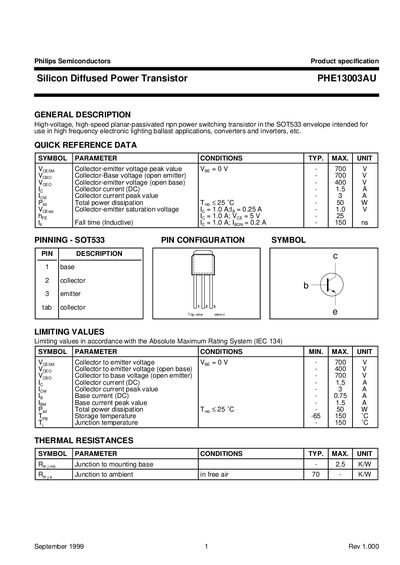

This document is a Philips Semiconductors product specification sheet that introduces the features and characteristics of the PHE13003AU product.
The document describes the PHE13003AU as a high-voltage, high-speed planar-passivated npn power switching transistor intended for use in electronic lighting ballast applications, converters, and inverters. It is housed in an SOT533 envelope.
Key electrical characteristics include a collector-emitter voltage peak value of 700 V, a maximum DC collector current of 1.5 A, and a total power dissipation of 50 W at 25 °C. The datasheet details static and dynamic characteristics, thermal resistances, and mechanical dimensions.
| Collector current (DC) (lc) | - 1.5 A |
|---|---|
| Total power dissipation (Prot) | - 50 W |
