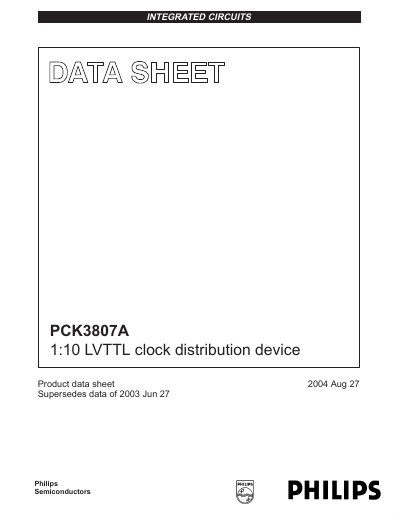

The PCK3807A is a 1:10 LVTTL clock distribution device with features such as low delay, low power consumption, low duty cycle distortion, and low output skew. It is suitable for clock and signal distribution.
The Philips Semiconductors PCK3807A is a low-skew clock driver designed for efficient clock and signal distribution with a 1:10 fan-out capability. It features TTL-compatible inputs and outputs, multiple power and ground pins to reduce noise, and operates over an industrial temperature range of -40°C to +85°C.
| Supply voltage range | 2.5 V or 3.3 V |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
| Maximum output skew | < 120 ps |
| Maximum duty cycle distortion | < 200 ps |
| Maximum propagation delay | < 3.5 ns |
| Typical input capacitance | 2.5 pF |
| Maximum output frequency | 400 MHz |
The PCK3807A can operate functionally up to 400 MHz.
The device supports an input signal frequency of up to 150 MHz.
