SBL2030PT and SBL2040PT are Schottky rectifiers used for low voltage, high frequency inverters, free wheeling, and polarity protection applications. They have features such as low power loss, high efficiency, high current capability, and low forward voltage drop.

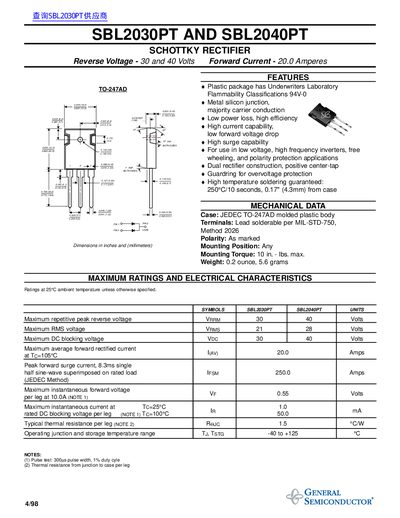

This document is a technical datasheet for the General Semiconductor SBL2030PT and SBL2040PT, which are dual Schottky rectifiers housed in TO-247AD plastic packages. These devices feature majority carrier conduction with low power loss and high efficiency, designed for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
| Reverse Voltage (SBL2030PT) | 30 Volts |
|---|---|
| Reverse Voltage (SBL2040PT) | 40 Volts |
| Forward Current | 20.0 Amps |
| Package Type | TO-247AD |
| Operating Temperature Range | -40 to +125 °C |
The maximum instantaneous forward voltage per leg at 10.0A is 0.55 Volts.
They are intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
