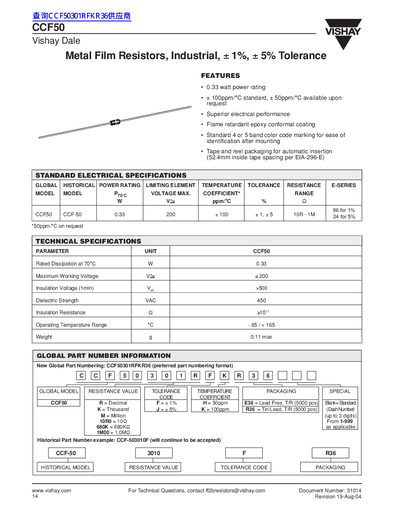

CCF50 is a metal film resistor produced by Vishay Dale. It has a 0.33 watt power rating, a ±100ppm/°C standard, a ±50ppm/°C option, superior electrical performance, flame retardant epoxy conformal coating, standard 4 or 5 band color code marking, and automatic insertion reel packaging.
This document provides technical data for the Vishay Dale CCF50 series of industrial metal film resistors. Key features include a 0.33 watt power rating, standard tolerance options of +1% and +5%, and temperature coefficients ranging from +100ppm/°C to +50ppm/°C upon request.
The datasheet outlines global part numbering conventions, historical model codes, and physical dimensions in both inches and millimeters. It also lists performance test results based on MIL-R-10509 standards, covering thermal shock, vibration, life expectancy, and soldering heat resistance.
| Power Rating | 0.33 watt |
|---|---|
| Tolerance Options | +1%, +5% |
| Temperature Coefficient | +100ppm/°C standard, +50ppm/°C available upon request |
| Operating Temperature Range | -65 to +165 °C |
| Maximum Working Voltage | 200 V |
The standard temperature coefficient is +100ppm/°C, though +50ppm/°C is available upon request.
The CCF50 series offers tolerances of +1% and +5%.
