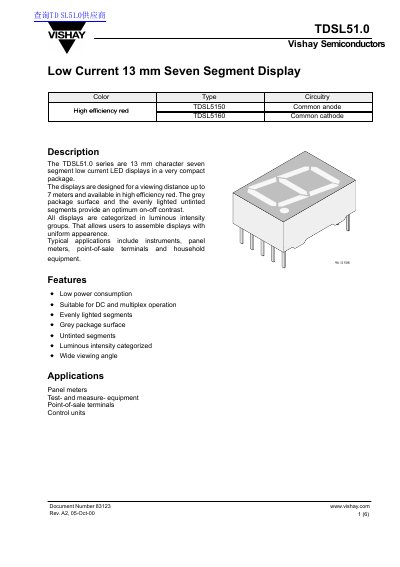

This document is a datasheet of Vishay TDSL51.0 series LED display. It mainly introduces the technical parameters, features and application scenarios of the display
The TDSL51.0 series consists of compact 13 mm character seven-segment LED displays designed for a viewing distance up to 7 meters. They feature high-efficiency red color, grey package surfaces, and untinted segments to provide optimum on-off contrast. The displays are categorized by luminous intensity groups to ensure uniform appearance when assembled.
| Package Size | 13 mm character |
|---|---|
| Color Type | High efficiency red |
| Circuitry Types | Common anode / Common cathode |
| Reverse Voltage per Segment | 6 V DC |
| Forward Current per Segment | 15 mA |
| Peak Forward Current per Segment | 45 mA |
| Surge Forward Current per Segment | 100 mA |
| Power Dissipation | 320 mW |
| Operating Temperature Range | -40 to +85 °C |
| Dominant Wavelength | 612 nm (typical) |
Typical applications include instruments, panel meters, point-of-sale terminals and household equipment.
Yes, it is suitable for DC and multiplex operation.
The displays are designed for a viewing distance up to 7 meters.
