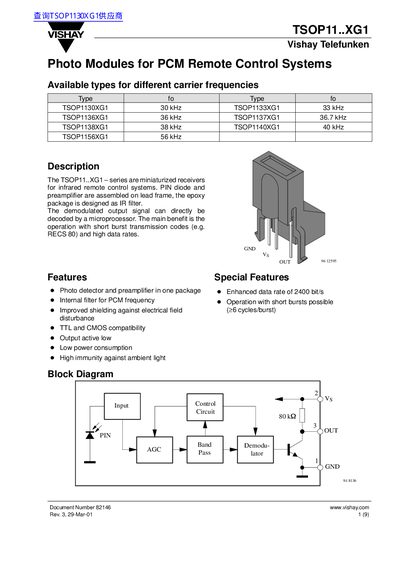

The TSOP11..XG1 is a miniature receiver for infrared remote control systems from Vishay Telefunken, which has an internal filter and can be directly decoded by a microprocessor
The document describes the TSOP11..XG1 series as miniaturized receivers designed for PCM remote control systems. These devices integrate a photo detector and preamplifier in one package with an internal filter, allowing direct decoding by a microprocessor. The series supports various carrier frequencies ranging from 30 kHz to 56 kHz.
| Supply Voltage Range | -0.3...6.0 V |
|---|---|
| Operating Temperature Range | -25...+85 °C |
| Junction Temperature Max | 100 °C |
| Enhanced Data Rate | 2400 bit/s |
| Output Type | Active low |
Suitable formats include NEC Code, Toshiba Micom Format, Sharp Code, RC5 Code, and RECS-80 Code.
Yes, the main benefit is operation with short burst transmission codes such as RECS 80.
