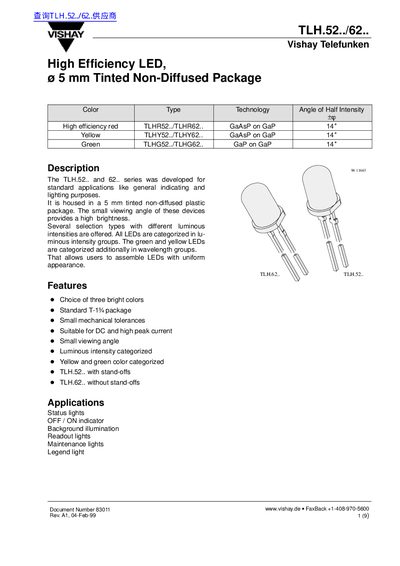

The TLH.52.. and 62.. series was developed for standard applications like general indicating and lighting purposes. It is housed in a 5 mm tinted non-diffused plastic package. The small viewing angle of these devices provides a high brightness. Several selection types with different luminous intensities are offered. All LEDs are categorized in luminous intensity groups. The green and yellow LEDs are categorized additionally in wavelength groups. That allows users to assemble LEDs with uniform appearance.
The TLH.52.. and 62.. series of High Efficiency LEDs are designed for standard applications such as status lights, background illumination, and readout indicators. These devices feature a small viewing angle to provide high brightness and are housed in a 5 mm tinted non-diffused plastic package.
| Package Type | 5 mm tinted non-diffused plastic package |
|---|---|
| Reverse Voltage (Va) | 6 V |
| DC Forward Current (Ip) | 30 mA |
| Surge Forward Current | 1 A |
| Operating Temperature Range | -20 to +100 °C |
The devices have a small viewing angle of +14 degrees.
The LEDs operate from -20 to +100 °C and store from -55 to +100 °C.
The maximum DC forward current at 65°C is 30 mA.
