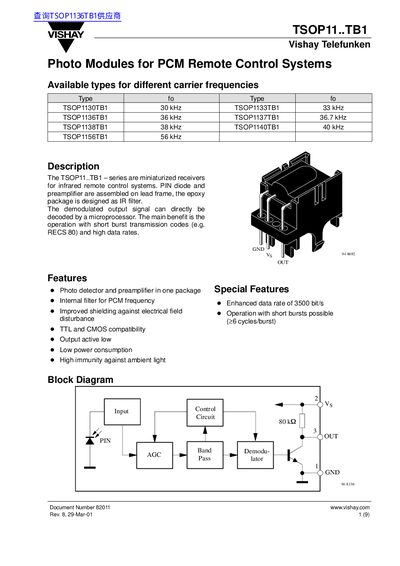

The TSOP11..TB1 series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes (e.g. RECS 80) and high data rates.
The document details the Vishay TSOP11..TB1 series, which are miniaturized receivers designed for infrared remote control systems. These devices integrate a photo detector and preamplifier in one package with an epoxy IR filter. They support operation with short burst transmission codes and offer high data rates up to 3500 bit/s.
| Supply Voltage | 4.5 to 5.5 V |
|---|---|
| Operating Temperature Range | -25...+85 °C |
| Enhanced Data Rate | 3500 bit/s |
| Burst Transmission Support | Short bursts possible (26 cycles/burst) |
The series includes types for 30 kHz, 33 kHz, 36 kHz, 36.7 kHz, 38 kHz, 40 kHz, and 56 kHz.
Yes, the datasheet lists 'Output active low' as a key feature.
