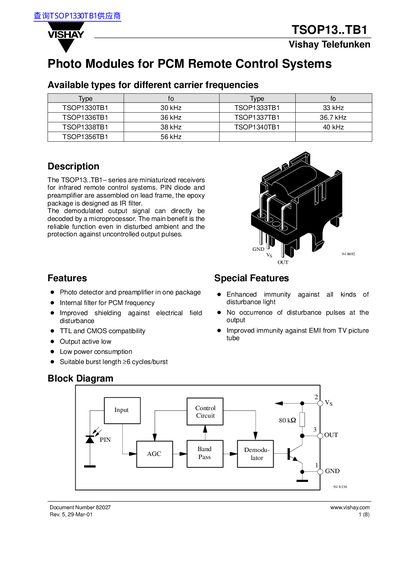

TSOP1330TB1 is a miniature receiver for infrared remote control systems, working at 30kHz
The document describes the TSOP13..TB1 series, which are miniaturized receivers for infrared remote control systems. These modules feature a photo detector and preamplifier in one package with an internal filter for PCM frequency. They offer improved shielding against electrical field disturbance and enhanced immunity against all kinds of disturbance light.
| Supply Voltage (Pin 2) | -0.3...6.0 V |
|---|---|
| Operating Temperature Range | -25...+85 °C |
| Power Consumption (Tamb < 85 °C) | 50 mw |
| Junction Temperature | 100 °C |
The TSOP13..TB1 series is available in types for different carrier frequencies including 30 kHz, 33 kHz, 36 kHz, 38 kHz, 40 kHz, and 56 kHz.
Suitable data formats include NEC Code, Toshiba Micom Format, Sharp Code, RC5 Code, RECS-80 Code, and R-2000 Code.
