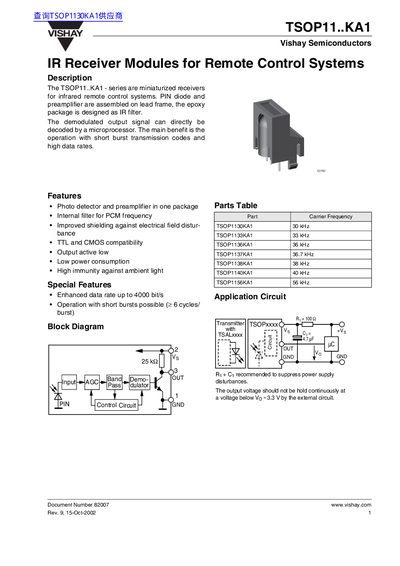

The TSOP11..KA1 series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes and high data rates.
The document describes the TSOP11..KA1 series, which are miniaturized receivers for infrared remote control systems. These modules integrate a photo detector and preamplifier in one package with an epoxy filter design. They feature internal filtering for PCM frequency and improved shielding against electrical field disturbances.
| Operating Temperature Range | -25 to +85 °C |
|---|---|
| Supply Voltage | 4.5 to 5.5 V |
| Junction Temperature | 100 °C |
The enhanced data rate can be up to 4000 bit/s.
The output is active low.
Suitable formats include NEC Code, Toshiba Micom Format, Sharp Code, RC5 Code, and RC6 Code.
