M27C801 is an 8 Mbit UV EPROM and OTP EPROM with a supply voltage of 5V ± 10% and an access time of 45ns in read operation. It features low power consumption, programming voltage of 12.75V ± 0.25V, programming time of 50µs/word, etc.

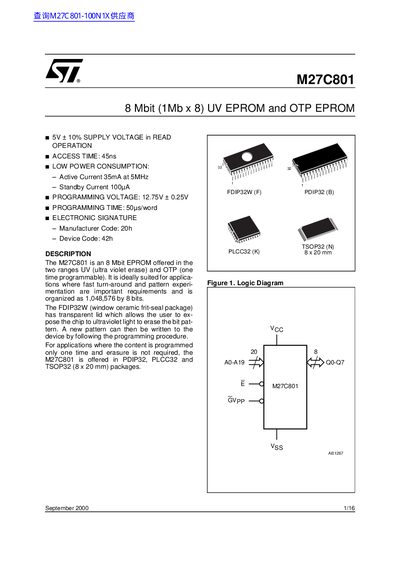

The M27C801 is an 8 Mbit (1Mb x 8) EPROM offered in two ranges: UV (ultra violet erase) and OTP (one time programmable). It is organized as 1,048,576 by 8 bits. The device features a fast access time of 45ns and low power consumption with an active current of 35mA.
| Capacity | 8 Mbit (1Mb x 8) |
|---|---|
| Access Time | 45ns |
| Active Current | 35mA |
| Standby Current | 100uA |
| Programming Voltage | 12.75V + 0.25V |
| Programming Time | 50us/word |
| Operating Temperature Range | -40 to 125 °C |
The manufacturer code is 20h and the device code is 42h.
The device has an access time of 45ns.
Standby current is reduced to 100uA.
Programming requires a supply voltage of 12.75V plus or minus 0.25V.
