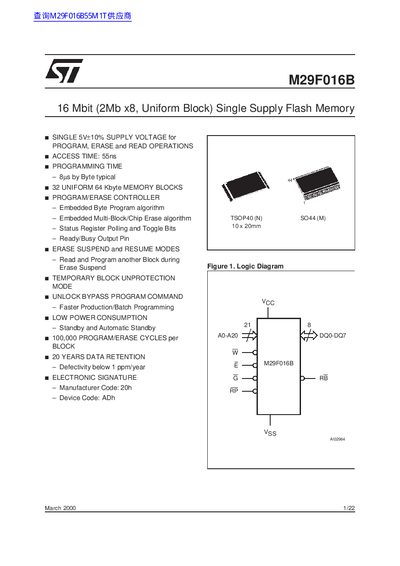

This document describes the features and characteristics of the M29F016B 16 Mbit (2Mb x8, Uniform Block) Single Supply Flash Memory, including single supply voltage, access time, programming time, memory blocks, program/erase controller, erase suspend and resume modes, temporary block unprotection mode, unlock bypass program command, low power consumption, lifetime, electronic signature, etc.
The document describes the M29F016B, a 16 Mbit (2Mb x8) non-volatile Flash Memory designed for read, erase, and reprogram operations using a single 5V supply. The device features an embedded Program/Erase controller that simplifies updating memory contents and includes status register polling and toggle bits.
| Memory Capacity | 16 Mbit (2Mb x8) |
|---|---|
| Supply Voltage | 5V +10% |
| Access Time | 55ns |
| Programming Time (Byte) | 8s typical |
| Memory Blocks | 32 Uniform 64 Kbyte blocks |
| Program/Erase Cycles | 100,000 per block |
| Data Retention | 20 Years |
The manufacturer code for this device is 20h.
The device code is ADh.
It is offered in TSOP40 (10 x 20mm) and SO44 packages.
