VISHAY LH1520AB/ AAC/ AACTR is a dual-channel solid-state relay with features such as current limit protection, isolation test voltage of 5300 VRMS, typical resistance of 20Ω, load voltage of 350V, and load current of 150mA.

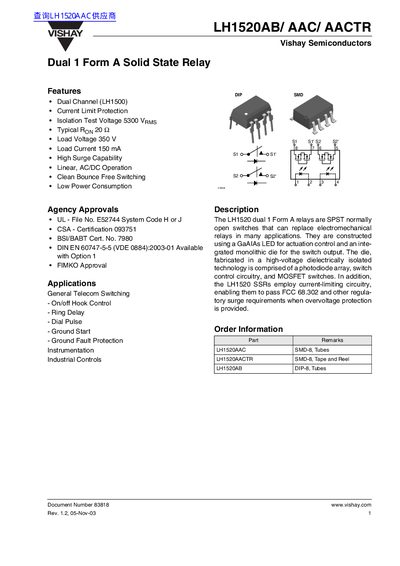

The document describes the LH1520AB/AAC/AACTR as a Dual 1 Form A Solid State Relay featuring current limit protection and high surge capability. It is designed for linear AC/DC operation with clean, bounce-free switching. The device utilizes a GaAlAs LED for actuation control and an integrated monolithic die for the switch output.
| Load Current (one pole) | 150 mA |
|---|---|
| Ambient Temperature Range | -40 to +85 °C |
The device supports a continuous DC load current of 150 mA when operating on one pole.
The device operates within an ambient temperature range of -40 to +85 °C.
The device has an input/output isolation test voltage of 5300 Vrms.
