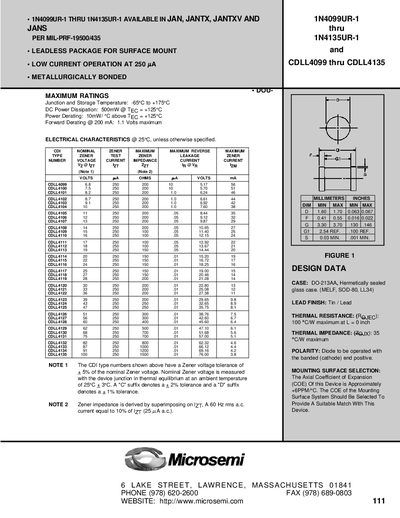

Microsemi 1N4099UR-1 thru 1N4135UR-1 CDLL4099 thru CDLL4135

1N4099UR-1 THRU 1N4135UR-1 is a zener diode from Microsemi Corporation. It features low current operation, metallurgy bonding, and surface mounting

Brand: Microsemi
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 113 KB
Published: 07 June, 2012
Updated: 30 September, 2023
Models: 1N4099UR-1, 1N4135UR-1, CDLL4099, CDLL4135
MD5 checksum: FC7DD53CC23EF0EA1D6E8EA0D7535119
PDF: Microsemi 1N4099UR-1 thru 1N4135UR-1 CDLL4099 thru CDLL4135 PDF

About this manual

This document is a technical datasheet for the Microsemi CDLL4099 through CDLL4135 series of zener diodes. These devices are designed for low current operation at 250 pA maximum reverse leakage current and feature leadless packages suitable for surface mount applications.

What's inside

Maximum Ratings
Electrical Characteristics
Zener Impedance vs Operating Current
Power Derating Curve
Mounting Surface Selection

Specifications

Junction and Storage Temperature	-65°C to +175°C
DC Power Dissipation	500mW @ TEG = +125°C
Power Derating	10mW/ °C above TEG = +125°C
Forward Derating @ 200 mA	1.1 Volts maximum
Zener Voltage Tolerance	+5% of nominal Zener voltage

Frequently asked questions

What is the maximum reverse leakage current?

The maximum reverse leakage current is 250 pA.

Are these diodes suitable for surface mount?

Yes, they are available in a leadless package designed for surface mount applications.
