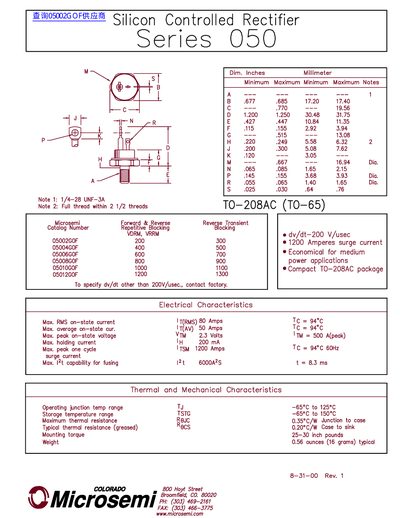

This document provides technical specifications for the Microsemi Series 050 Silicon Controlled Rectifier. It details the physical dimensions in inches and millimeters, along with a catalog of available part numbers ranging from 05002GOF to 05012G0F.
| RMS on-state current | 80 Amps |
|---|---|
| Max. peak one cycle surge current | 1200 Amps |
| Operating junction temp range | -65°C to 125°C |
| Package type | TO-208AC (TO-65) |
The typical weight is 0.56 ounces or 16 grams.
The maximum thermal resistance Rjc is 0.35°C/W.
The critical dv/dt is 200V/usec.
