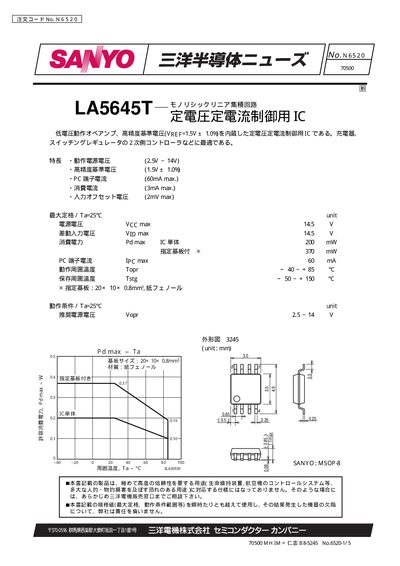

Sanyo LA5645T Control IC Datasheet

LA5645T is a low voltage operational amplifier with built-in high precision reference voltage, suitable for chargers and secondary side controllers of switching regulators.

Brand: Sanyo
Category: Other Electronics
Document type: Datasheet
Language: Japanese
Pages: 5
File format: PDF
File size: 41 KB
Published: 05 June, 2012
Updated: 28 September, 2023
MD5 checksum: 40A0D5CFC7D837DEEF3803D9B5AB4EAC
PDF: Sanyo LA5645T Control IC Datasheet PDF

About this manual

The document is a technical datasheet for the Sanyo LA5645T, a Constant Voltage/Current Control IC designed for use in chargers and secondary side controllers of switching regulators. It features a built-in high-precision voltage reference (VREF) of 1.5V with an accuracy of within 1%. This manual is written in Japanese.

What's inside

Features
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Application Circuits

Specifications

Supply Voltage Range	2.5V - 14V
Reference Voltage Accuracy	1.5V +/- 1%
PC Pin Current	60mA max.
Supply Current	3mA max.
Input Offset Voltage	2mV max

Frequently asked questions

What is the maximum operating power dissipation for this IC when mounted on a specified board?

The maximum power dissipation (Pd) is 370 mW when used with a specified board.

What is the recommended operating voltage range for this control IC?

The recommended supply voltage (Vopr) ranges from 2.5 V to 14 V.

What is the maximum current this IC can sink at its PC terminal?

The maximum PC terminal current (IPC) is 60 mA.
