The KB2147 is a monolithic integrated circuit designed to control all the functions related to the horizontal and vertical deflection in multimodes or multisync monitors. It features self-adaptive frequency range, X-ray protection input, adjustable duty-cycle, wide range DC controlled H-position, etc.

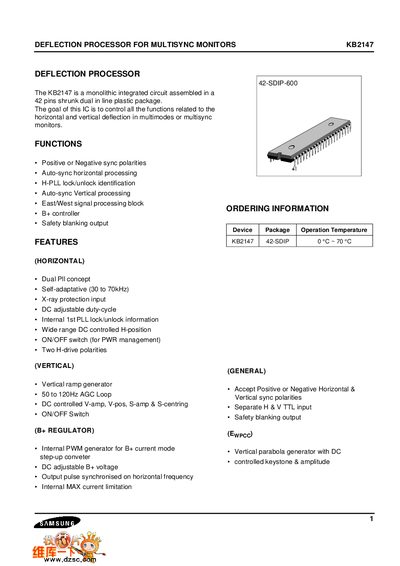

The document describes the KB2147, a 42-pin shrunk dual in line plastic package monolithic integrated circuit designed to control horizontal and vertical deflection functions in multimodes or multisync monitors. Key features include auto-sync processing for both horizontal and vertical signals, East/West signal processing, B+ controller capabilities, and safety blanking output.
| Package Type | 42 pins shrunk dual in line plastic package |
|---|---|
| Operating Temperature Range | 0°C ~ 70°C |
| Supply Voltage (Typical) | 12 V |
| Maximum Operating Junction Temperature | 150 °C |
| Horizontal Sync Input Voltage Range | 0 to 5.5 V |
It controls all functions related to horizontal and vertical deflection in multisync monitors.
The device operates between 0°C and 70°C.
The typical supply voltage (Vcc) is 12 V.
