M470L1624FT0-C(L)B3/A2/B0 is a 128MB DDR SDRAM SODIMM memory module from Samsung. It uses 256Mb F-die chips, supports 64-bit and 72-bit data width, and has a frequency of 133MHz and 166MHz with timing of 2.5-3-3 and 2.5-3-3.

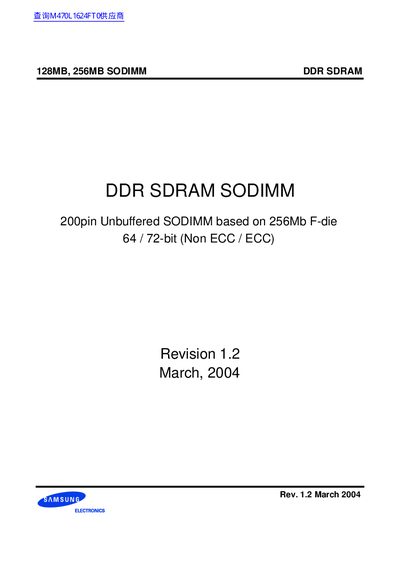

This datasheet describes the specifications for Samsung DDR SDRAM SODIMM modules with capacities of 128MB and 256MB. These unbuffered modules are based on a 256Mb F-die and support both Non ECC and ECC configurations. The document details ordering information, operating frequencies, and key features such as double-data-rate architecture and serial presence detect.
| Product Type | DDR SDRAM 200pin Unbuffered SODIMM |
|---|---|
| Base Die | 256Mb F-die |
| Supply Voltage (VDD) | 2.5V ± 0.2V |
| I/O Supply Voltage (VDDQ) | 2.5V ± 0.2V |
| Operating Temperature Range | -55 ~ +150 °C |
| Power Dissipation | 1.5 * # of component W |
The standard PCB height for both single-sided (128MB) and double-sided (256MB) components is 1,250 mil.
Yes, the document covers both Non ECC and ECC configurations for the 128MB and 256MB capacities.
