This is a 32Kx8 bit high-performance CMOS static RAM, operating voltage is 5V, suitable for commercial and industrial temperature range.

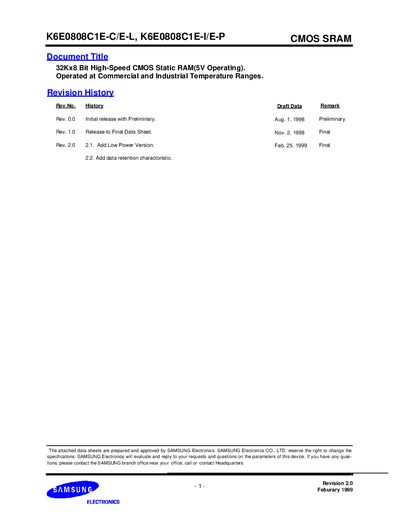

The document details the specifications for the K6E0808C1E family of Static Random Access Memories (SRAM). These devices are organized as 32,768 words by 8 bits and utilize a single +5.0V power supply with TTL-compatible inputs and outputs. The memory is designed for high-density, high-speed system applications where no clock or refresh is required.
| Memory Organization | 32K x 8 Bit (32,768 words by 8 bits) |
|---|---|
| Operating Voltage | +5.0V ±10% |
| Access Time (Max) | 10, 12, or 15ns |
| Operating Temperature (Industrial) | -40 to 85 °C |
| Supply Current (Max) | 80mA |
The device can be stored between -65 and 150 degrees Celsius.
