APT80GP60B2 600V is a high-voltage power IGBT produced by Advanced Power of the United States. Using punch-through technology, it is ideal for many high-frequency, high-voltage switching applications and has been optimized for high-frequency switchmode power supplies.

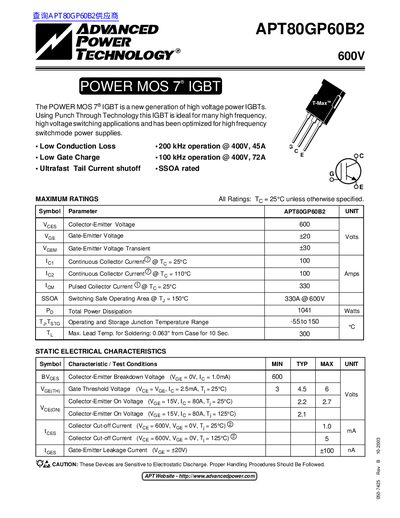

This document is a technical datasheet for the APT80GP60B2, a new generation of high voltage power IGBTs utilizing Punch Through Technology. It is optimized for high frequency switching applications such as switchmode power supplies.
The datasheet provides maximum ratings, static electrical characteristics, and dynamic characteristics including capacitance, gate charge, and switching energies. It also includes typical performance curves illustrating output characteristics, transfer characteristics, thermal impedance models, and operating frequencies.
| Total Power Dissipation | 1041 Watts |
|---|---|
| Operating Junction Temperature Range | -55 to 150 °C |
| Input Capacitance | 9840 pF |
| Total Gate Charge | 280 nC |
The device has a maximum collector-emitter voltage of 600 V.
The total power dissipation is rated at 1041 Watts.
The device operates and stores within a range of -55 to 150 °C.
