The HMP8115 is a high quality NTSC and PAL decoder with internal A/D converters. It is compatible with NTSC M, PAL B, D, G, H, I, M, N, and combination N (NC) video standards. Both composite and S-video (Y/C) input formats are supported. A 2-line comb filter Y/C separator. Fast I2C interface. Two 8-bit ADCs.

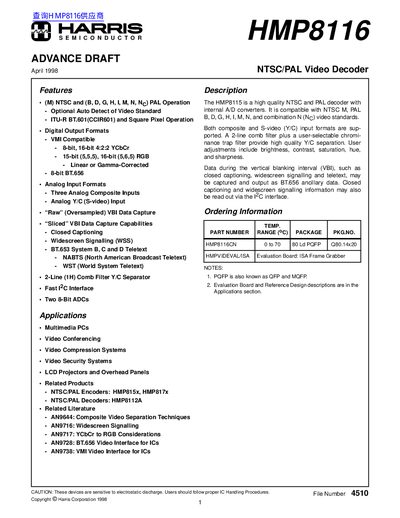

The Harris HMP8116 is a high-quality semiconductor device designed to decode baseband composite or S-video NTSC and PAL signals. It converts these analog inputs into either digital YCbCr or RGB data, supporting various video standards including NTSC M and multiple PAL variants.
In addition to standard decoding operations, the HMP8116 includes hardware for decoding Vertical Blanking Interval (VBI) data such as closed captioning and widescreen signalling. The device also generates digital video patterns for blue screens, black screens, and full-screen color bars.
| ADC Resolution | 8-bit |
|---|---|
| Output Formats | Digital YCbCr or RGB data |
| Operating Temperature Range | 0 to 70 °C |
The device supports NTSC and various PAL operation modes, including B, D, G, H, I, M, N, and combination N (Nc).
The decoder supports either three composite inputs or a combination of two composite and one S-video input.
