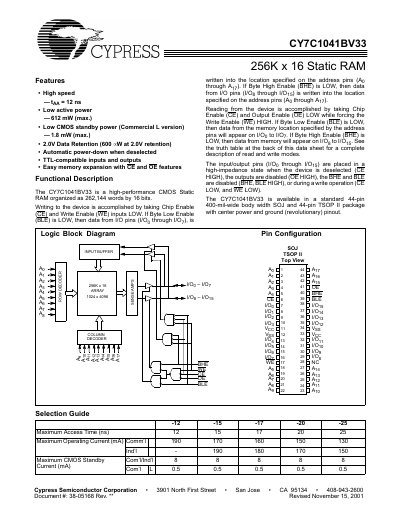

The CY7C1041BV33 is a high-performance CMOS Static RAM organized as 262,144 words by 16 bits, manufactured by Cypress Semiconductor Corporation. It features high speed, low active power, low CMOS standby power, 2.0V Data Retention, automatic power-down when deselected, TTL-compatible inputs and outputs, and easy memory expansion with CE and OE features.
The document describes the CY7C1041BV33 as a high-performance CMOS Static RAM organized as 262,144 words by 16 bits. Key features include high speed with access times starting at 12 ns and low power consumption options for both commercial and industrial applications.
| Organization | 262,144 words by 16 bits |
|---|---|
| Maximum Access Time (-12) | 12 ns |
| Max Active Power (Commercial) | 612 mW |
| Max Standby Power (Commercial L) | 1.8 mW |
| Data Retention Voltage | 2.0V |
The maximum address-to-data valid time (tAA) is 12 ns.
Writing requires taking Chip Enable (CE) and Write Enable (WE) inputs LOW.
The input/output pins are placed in a high-impedance state.
