This document is the user manual of APTGS25X120RTP2 APTGS25X120BTP2 APTGS25X120BTP2, which mainly introduces the functions, features, usage methods and precautions of the product.

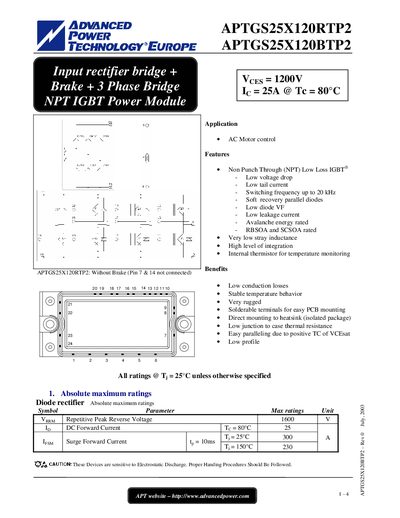

This document provides technical specifications for the Advanced Power APTGS25X120RTP2 and APTGS25X120BTP2 NPT IGBT Power Modules. These devices are designed as an input rectifier bridge combined with a 3-phase brake or inverter, specifically intended for AC motor control applications.
The modules feature Non Punch Through (NPT) Low Loss IGBT technology, offering benefits such as low voltage drop, low tail current, and switching frequencies up to 20 kHz. Key characteristics include soft recovery parallel diodes, avalanche energy ratings, and internal thermistors for temperature monitoring.
| Application | AC Motor control |
|---|---|
| Switching Frequency | Up to 20 kHz |
| Collector - Emitter Breakdown Voltage (Vers) | 1200 V |
| Maximum Power Dissipation (Pp) @ Tj=25°C (Inverter) | 230 W |
| Operating Junction Temperature Range | -40 to 150 °C |
| Package Weight | 185 g |
The primary application listed in the document is AC Motor control.
Key features include Non Punch Through (NPT) Low Loss IGBT, low voltage drop, low tail current, and soft recovery parallel diodes.
Yes, the BTP2 model includes an IGBT & Diode Brake component, whereas the RTP2 does not have a brake pin.
