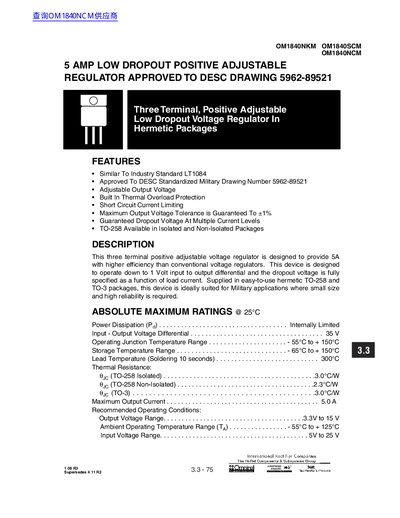

OM1840NKM is a 5 amp low dropout positive adjustable regulator. It is similar to the industry standard LT1084 and is approved to DESC standardized military drawing number 5962-89521. This device has adjustable output voltage, built-in thermal overload protection, short circuit current limiting, maximum output voltage tolerance guaranteed to ±1%, guaranteed dropout voltage at multiple current levels, and is available in TO-258 isolated and non-isolated packages.
The OM1840 is a three-terminal positive adjustable voltage regulator designed for military applications. It offers higher efficiency than conventional regulators with an operating input-to-output differential down to 1 Volt. The device features built-in thermal overload protection and short circuit current limiting, available in hermetic TO-258 (isolated and non-isolated) and TO-3 packages.
| Maximum Output Current | 5.0 A |
|---|---|
| Power Dissipation (Internally Limited) | 45 W |
| Operating Junction Temperature Range | -55°C to +150°C |
The device is approved to DESC Standardized Military Drawing Number 5962-89521.
The device is supplied in hermetic TO-258 (isolated and non-isolated) and TO-3 packages.
The device can operate down to a 1 Volt input to output differential.
