This document describes a N-channel MOSFET with bi-lateral zener gate protection, which can operate in the voltage range of 100V to 500V with a maximum current of 35A. The product is housed in an isolated hermetic metal package and features fast switching, low drive current, low RDS(on), and ease of paralleling. It is ideally suited for military applications where small size, high performance, and high reliability are required, as well as for switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high energy pulse circuits.

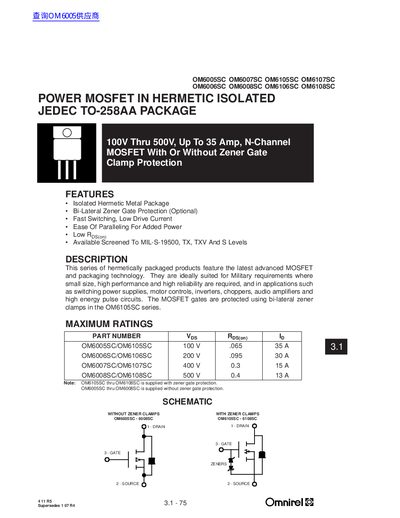

This document is a datasheet for a series of hermetically packaged N-channel MOSFETs with various voltage and current ratings. The MOSFETs are available in isolated hermetic metal packages and feature fast switching, low drive current, and ease of paralleling for added power. They are ideally suited for military requirements and applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high-energy pulse circuits.
| Package Type | Isolated Hermetic Metal Package |
|---|---|
| Gate Protection | Bi-Lateral Zener Gate Protection (Optional) |
| Operating Temperature Range | -55 to 150 °C |
| Maximum Power Dissipation (TC=25°C) | 125 W |
| Junction-to-Case Thermal Resistance | 1.0 °C/W |
| Junction-to-Ambient Thermal Resistance | 40 °C/W |
They are suitable for military requirements, switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high-energy pulse circuits.
No, the OM6105SC through OM6108SC series includes zener gate protection, while the OM6005SC through OM6008SC series does not.
The maximum continuous drain current for the OM6005SC is 35 A at TC=25°C.
