This document describes a 3.1 - 85 3.1 power MOSFET with isolated hermetic packaging and features such as fast switching. It is suitable for military requirements and various applications.

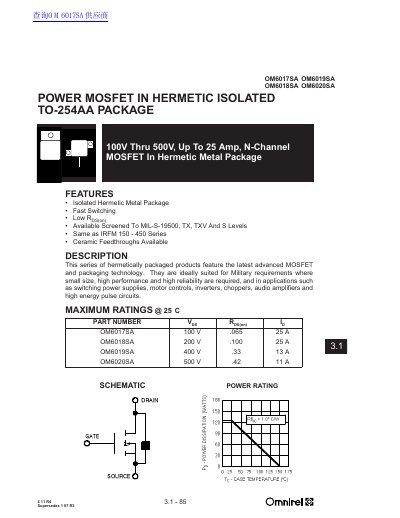

This document provides technical specifications for the Omnirel OM6017SA, OM6018SA, OM6018SA, and OM6020SA series of N-channel Power MOSFETs. These devices are housed in hermetically isolated TO-254AA packages and feature fast switching and low resistance. They are designed for military requirements and applications such as switching power supplies, motor controls, inverters, and high energy pulse circuits.
| Package Type | TO-254AA |
|---|---|
| Channel Type | N-Channel |
| OM6017SA Drain-Source Voltage | 100 V |
| OM6018SA Drain-Source Voltage | 200 V |
| OM6019SA Drain-Source Voltage | 400 V |
| OM6020SA Drain-Source Voltage | 500 V |
| Continuous Drain Current (25°C) | Up to 25 A |
| Maximum Power Dissipation (25°C) | 125 W |
| Operating Temperature Range | -55 to 150 °C |
They are suited for military requirements and applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high energy pulse circuits.
Yes, ceramic feedthroughs are available as an option for the standard glass feedthroughs.
