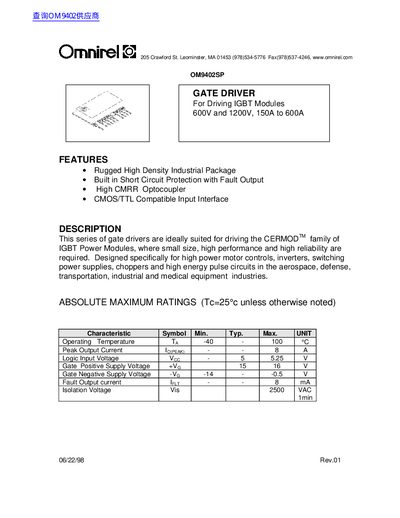

The OM9402SP is a gate driver produced by OmniRel for driving IGBT modules. It features rugged high density industrial package, built-in short circuit protection with fault output, high CMRR optocoupler and CMOS/TTL compatible input interface.
The Omnirel OM9402SP is a rugged, high-density gate driver intended for driving CERMOD family IGBT power modules. It is specifically designed for high-power motor controls, inverters, switching power supplies, choppers, and high-energy pulse circuits used in aerospace, defense, transportation, industrial, and medical equipment industries. Key features include built-in short circuit protection with a fault output, high CMRR optocoupler isolation, and CMOS/TTL compatible input interfaces.
| Operating Temperature | -40 to 100 °C |
|---|---|
| Peak Output Current | 8 A |
| Isolation Voltage | 2500 VAC |
| Gate Positive Supply Voltage | 15 V (Typ) |
| Gate Negative Supply Voltage | -14 V (Typ) |
It is designed for driving IGBT modules rated at 600V and 1200V.
The device supports peak output currents from 150A to 600A.
Yes, it includes built-in short circuit protection with a fault output.
