The OM6056SB-OM6061SB is a high current, high voltage MOSFET with a rated voltage range of 100V to 1000V and a rated current of 190A. This series of products uses advanced MOSFET technology combined with a package specifically designed for high efficiency, high current applications, and is ideal for high reliability applications where small size, high performance and high reliability are required, as well as applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers and high energy pulse circuits. This series also features avalanche high energy capability at elevated temperatures.

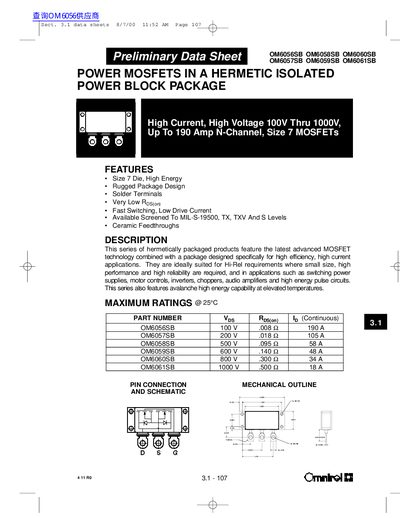

This document describes a series of high current, high voltage N-Channel Size 7 MOSFETs packaged in a hermetically isolated power block. These devices feature rugged design and are suitable for applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high energy pulse circuits.
| Drain Source Voltage (Vos) | 100 V to 1000 V |
|---|---|
| Continuous Drain Current (OM6056SB) | 190 A |
| Operating and Storage Temp. Range | -55 to +150 °C |
| Max. Power Dissipation @ 25°C | 570 W |
| Junction-to-Case Thermal Resistance (Ric) | 23 °C/W |
The series includes models with drain source voltages ranging from 100 V to 1000 V.
The maximum continuous drain current for the OM6056SB at 25°C is 190 A.
Yes, the document states they are ideally suited for applications such as... high energy pulse circuits.
