Omnirel B OM100Q50CB/RB/DB OM100Q60CB/RB/DB OM100Q30CB/RB/DB OM100Q40CB/RB/DB OM100Q15CB/RB/DB OM100Q20CB/RB/DB OM100Q05CB/RB/DB OM100Q10CB/RB/DB OM100Q70CB/RB/DB OM100Q80CB/RB/DB handbook

OM100Q05CB/RB/DB is a 100A, 50 to 800V high speed center tap in hermetic isolated power block package produced by OMRON.

Brand: Omnirel
Category: RECTIFIER
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 23 KB
Published: 03 July, 2012
Updated: 30 September, 2023
MD5 checksum: 4E7B7046317FBBE2240E3B514A0DDB27

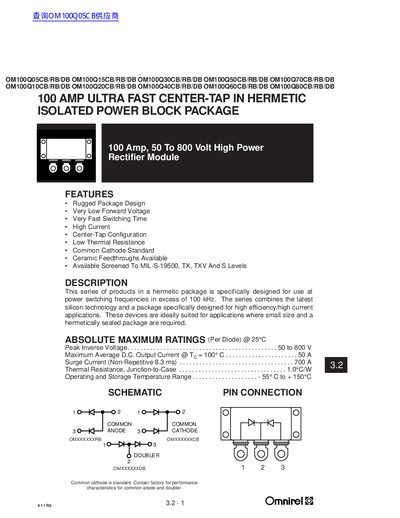

PDF: Omnirel B OM100Q50CB/RB/DB OM100Q60CB/RB/DB OM100Q30CB/RB/DB OM100Q40CB/RB/DB OM100Q15CB/RB/DB OM100Q20CB/RB/DB OM100Q05CB/RB/DB OM100Q10CB/RB/DB OM100Q70CB/RB/DB OM100Q80CB/RB/DB handbook PDF

About this manual

The Omnirel OM100Q Series consists of 100 Amp, 50 to 800 Volt High Power Rectifier Modules housed in a hermetically sealed package. These devices are designed for power switching frequencies in excess of 100 kHz and feature a rugged package design with very low forward voltage and very fast switching time.

What's inside

Features
Description
Absolute Maximum Ratings
Schematic Pin Connection
Electrical Characteristics
Typical Forward Voltage
Typical Reverse Current
Mechanical Outline

Specifications

Peak Inverse Voltage	50 to 800 V
Maximum Average D.C. Output Current	50A
Surge Current (Non-Repetitive 8.3 ms)	700A
Thermal Resistance, Junction-to-Case	1.0°C/W
Operating and Storage Temperature Range	-55°C to +150°C
Switching Frequency	In excess of 100 kHz

Frequently asked questions

What is the standard cathode configuration?

Common cathode is the standard configuration for these modules.

Are common anode and doubler configurations available?

Yes, but customers must contact the factory for performance characteristics for these variants.
