OM6214SS - OM6217SS is a dual high current, N-channel MOSFET from Onsemi, with a maximum voltage of 100V to 500V and a maximum current of 30A to 13A. This series of products features the latest advanced MOSFET and packaging technology, and is ideal for military applications where small size, high performance and high reliability are required, as well as applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers and high energy pulse circuits.

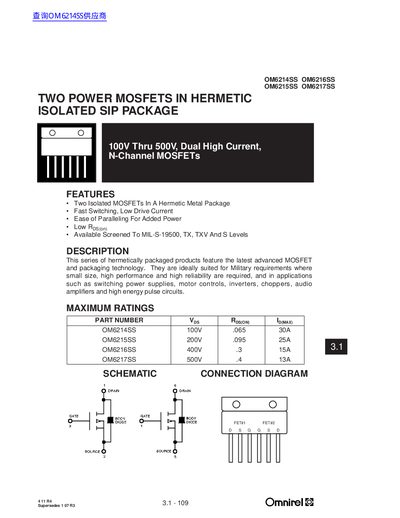

This document provides technical specifications for the Omnirel OM6214SS, OM6215SS, OM6216SS, and OM6217SS series. These products consist of two isolated N-channel MOSFETs housed in a hermetic metal SIP package, designed for high-reliability applications such as military switch-mode power supplies, motor controls, and inverters. The series offers voltage ratings ranging from 100V to 500V with continuous drain currents between 13A and 30A.
| Package Type | Hermetically Isolated SIP Package |
|---|---|
| Channel Type | N-Channel |
| OM6214SS Drain-Source Voltage | 100 V |
| OM6215SS Drain-Source Voltage | 200 V |
| OM6216SS Drain-Source Voltage | 400 V |
| OM6217SS Drain-Source Voltage | 500 V |
| Maximum Power Dissipation (25°C) | 125 W |
These MOSFETs are suited for military requirements and applications such as switch-mode power supplies, motor controls, inverters, choppers, audio amplifiers, and high energy pulse circuits.
The junction-to-case thermal resistance is 1.0 °C/W for all models in the series.
