OM6021SC is an N-channel MOSFET product produced by OMRON Corporation. The rated working voltage is 100V and the current is 35A. The package type is TO-259AA.

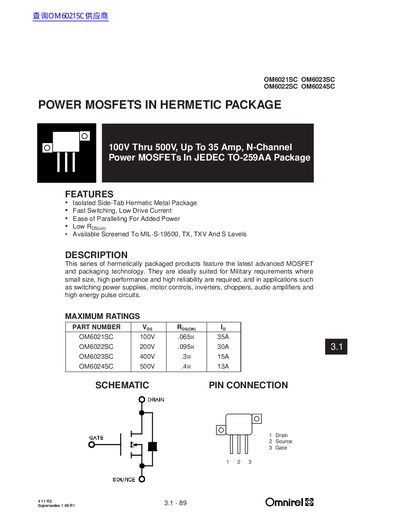

This document describes a series of N-Channel Power MOSFETs available in an isolated side-tab hermetic metal package (JEDEC TO-259AA). These devices utilize advanced MOSFET and packaging technology, making them suitable for military requirements and applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high energy pulse circuits. Key features include fast switching, low drive current requirements, and ease of paralleling for added power.
| Package Type | Isolated Side-Tab Hermetic Metal Package (JEDEC TO-259AA) |
|---|---|
| Channel Type | N-Channel |
| Voltage Range | 100V to 500V |
| Part Numbers | OM6021SC, OM6022SC, OM6023SC, OM6024SC |
| Pin Configuration | 1: Drain, 2: Source, 3: Gate |
The maximum voltage ratings range from 100V for the OM6021SC to 500V for the OM6024SC.
The maximum continuous drain current is 35A for the OM6021SC, 30A for the OM6022SC, 15A for the OM6023SC, and 13A for the OM6024SC.
These devices are ideally suited for military requirements, switching power supplies, motor controls, inverters, choppers, audio amplifiers, and high energy pulse circuits.
