OM1320STM is a 1.5 amp positive adjustable voltage regulator with thermal overload protection and short circuit current limiting. The device meets DESC Standardized Military Drawing Number 7703401 and is available in six package styles.
This document provides technical specifications for the Omnirel OM1320 series of three-terminal precision adjustable positive voltage regulators. These devices are supplied in hermetically sealed packages and feature built-in protective circuits including thermal overload protection, short circuit current limiting, and safe-area control.

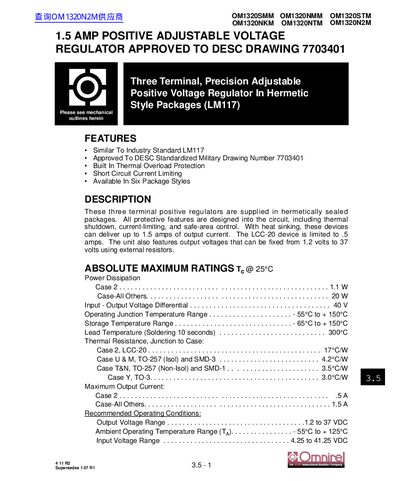

The datasheet details electrical characteristics such as reference voltage, line regulation, load regulation, and ripple rejection for various package types (SMD-3, TO-257, TO-3, LCC-20). It also includes absolute maximum ratings, recommended operating conditions, standard application circuit diagrams, and mechanical outline drawings with pin configurations.
| Maximum Output Current (Most Packages) | 1.5A |
|---|---|
| Output Voltage Range | 1.2V to 37V DC |
Most packages can deliver up to 1.5 amps of output current with heat sinking.
Yes, it is approved to DESC Drawing Number 7703401.
The devices are available in six package styles including SMD-3, TO-257 (Isolated/Non-Isolated), TO-3, and LCC-20.
