OM6516SC and OM6520SC are IGBT power transistors manufactured by OMRON. They feature high switching speeds and low on-resistance, making them ideal for high power switching applications such as frequency converters for three-phase motors, UPS and high power SMPS.

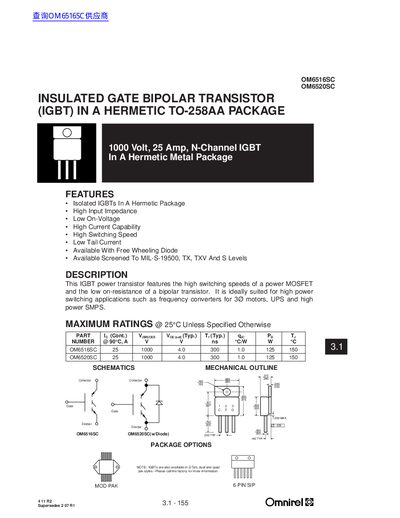

This document provides technical specifications for the Omnirel OM6516SC and OM6520SC, which are isolated N-Channel Insulated Gate Bipolar Transistors (IGBTs) housed in a hermetic TO-258AA package. These devices combine the high switching speeds of power MOSFETs with the low on-resistance of bipolar transistors.
| Device Type | N-Channel IGBT |
|---|---|
| Package Type | Hermetic TO-258AA |
| Collector Current (Ic) | 25 A |
| Collector-Emitter Voltage (Vces) | 1000 V |
The devices are rated for a maximum collector-emitter voltage of 1000 V.
They are designed for high power switching applications such as frequency converters for three motors, UPS, and high power SMPS.
