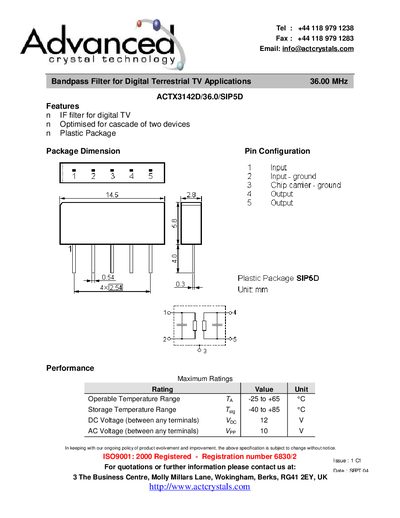

Advanced crystal technology ACTX3142D/36.0/SIP5D handbook

The document is the specification of ACTX3142D/36.0/SIP5D. It mainly introduces the function features, performance parameters, appearance dimensions and other information of the product.

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 98 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 479A2E26A67A273AB07ECAE38FC98836
PDF: Advanced crystal technology ACTX3142D/36.0/SIP5D handbook PDF

About this manual

This document is a technical datasheet for the ACTX3142D/36.0/SIP5D, an IF filter manufactured by Crystal Technology specifically optimized for digital terrestrial television (DTT) applications. The device features a plastic SIP5D package and is designed to be used in cascades of two devices.

What's inside

Features
Package Dimension
Pin Configuration
Maximum Ratings
Electronic Characteristics
Frequency Response

Specifications

Operating Temperature Range	-25 to +65 °C
Storage Temperature Range	-40 to +85 °C
DC Voltage Rating	12 V
AC Voltage Rating	10 Vpp
Center Frequency	36.00 MHz
Pass Bandwidth (1.5 dB)	77 MHz

Frequently asked questions

What is the operating temperature range for this filter?

The device operates between -25°C and +65°C.

What are the maximum DC voltage ratings between any terminals?

The maximum DC voltage rating is 12 V.

How much does the insertion attenuation vary at the reference frequency of 36.00 MHz?

The insertion attenuation ranges from a minimum of 19.0 dB to a maximum of 22.0 dB.
